Aether Air Quality Monitor - Essential Hardware

Currently shipping to the US only. Join the international waitlist here.

The uncompromising core of the Aether.

The Essential Hardware Kit provides the complete, pre-tested core of the Aether Air Quality Monitor without the fully assembled price tag. It includes exactly the same premium hardware found in our fully assembled units, leaving only the enclosure up to you.

Perfect for those who want to design their own enclosures for custom applications, or 3D printing enthusiasts who want to print our standard case in their own custom filaments.

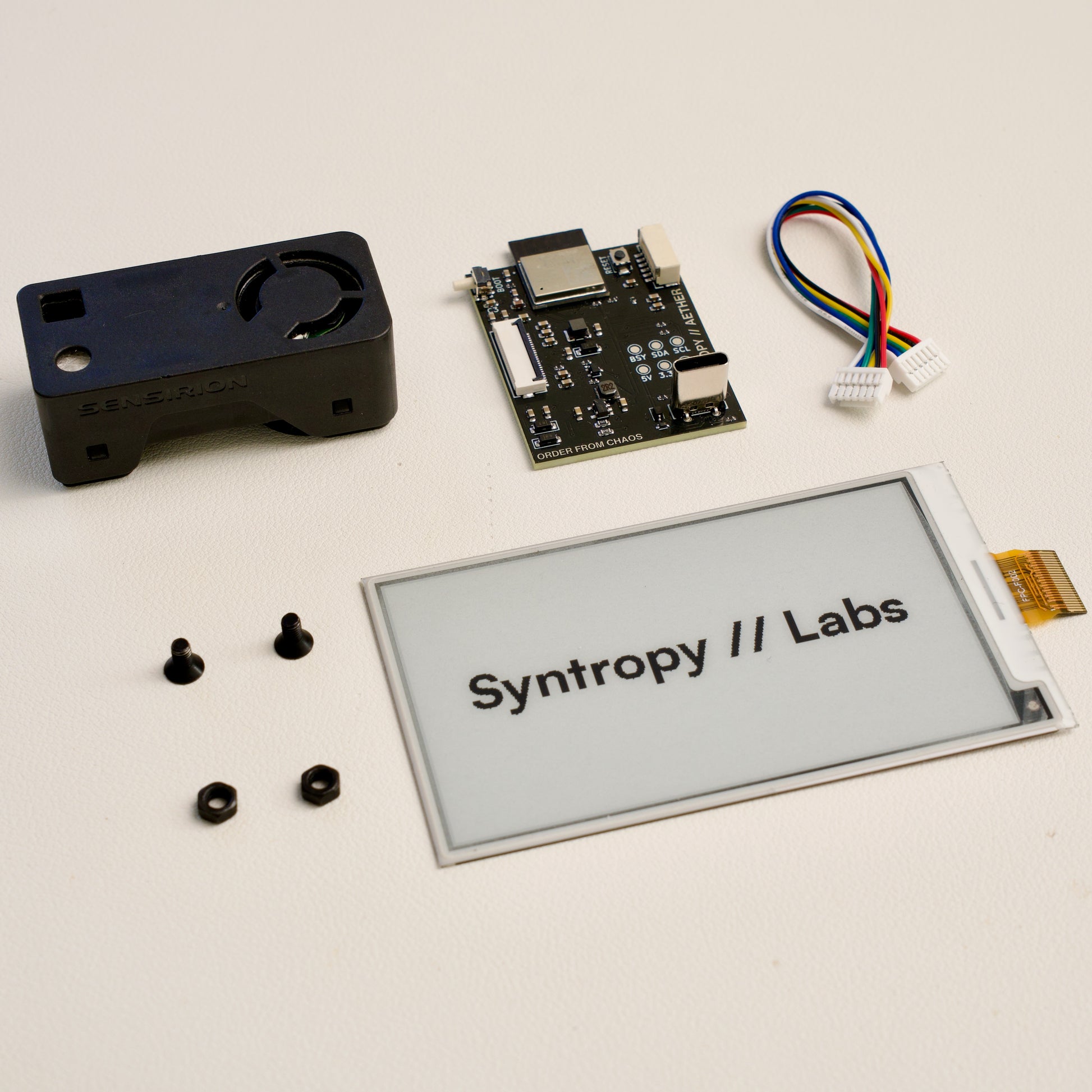

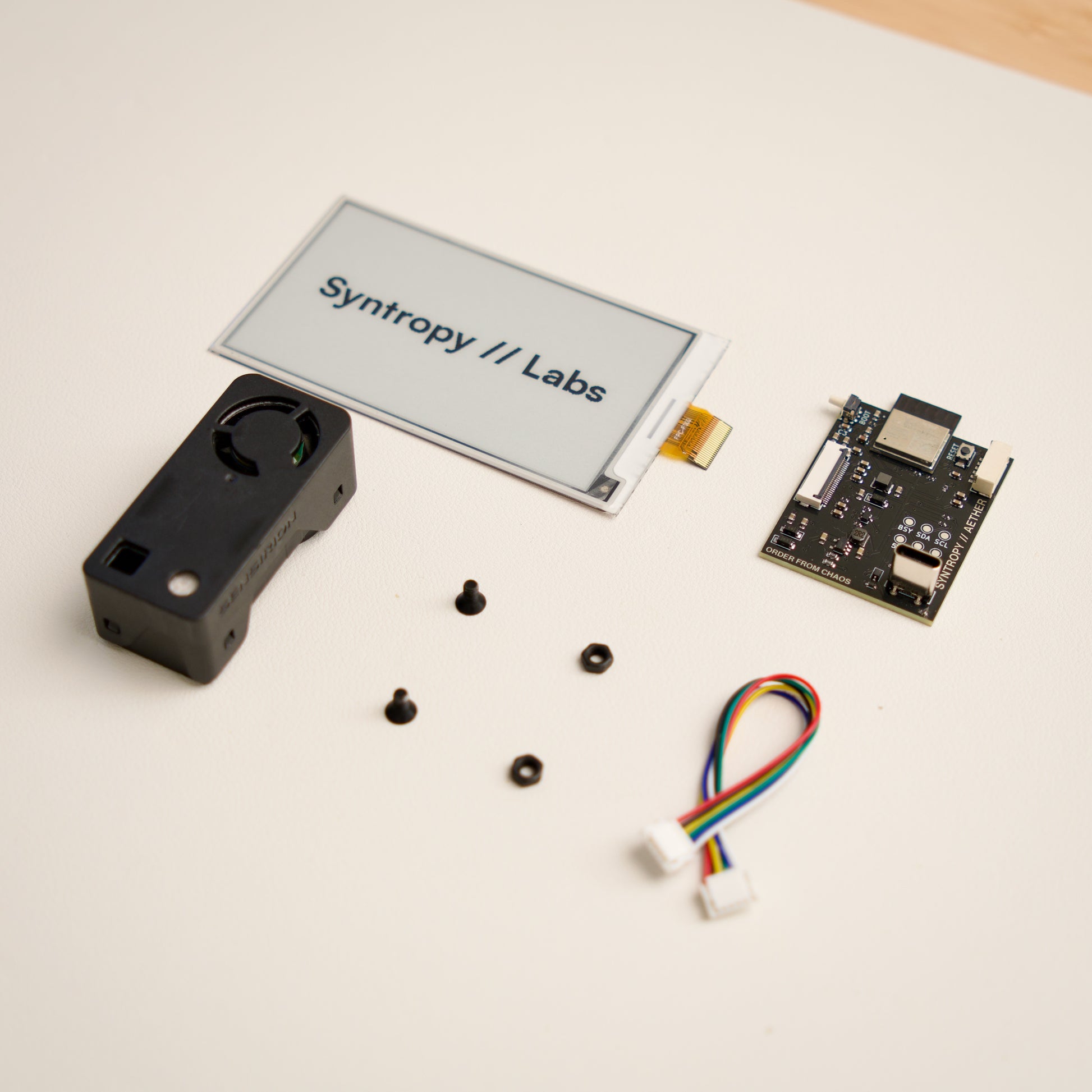

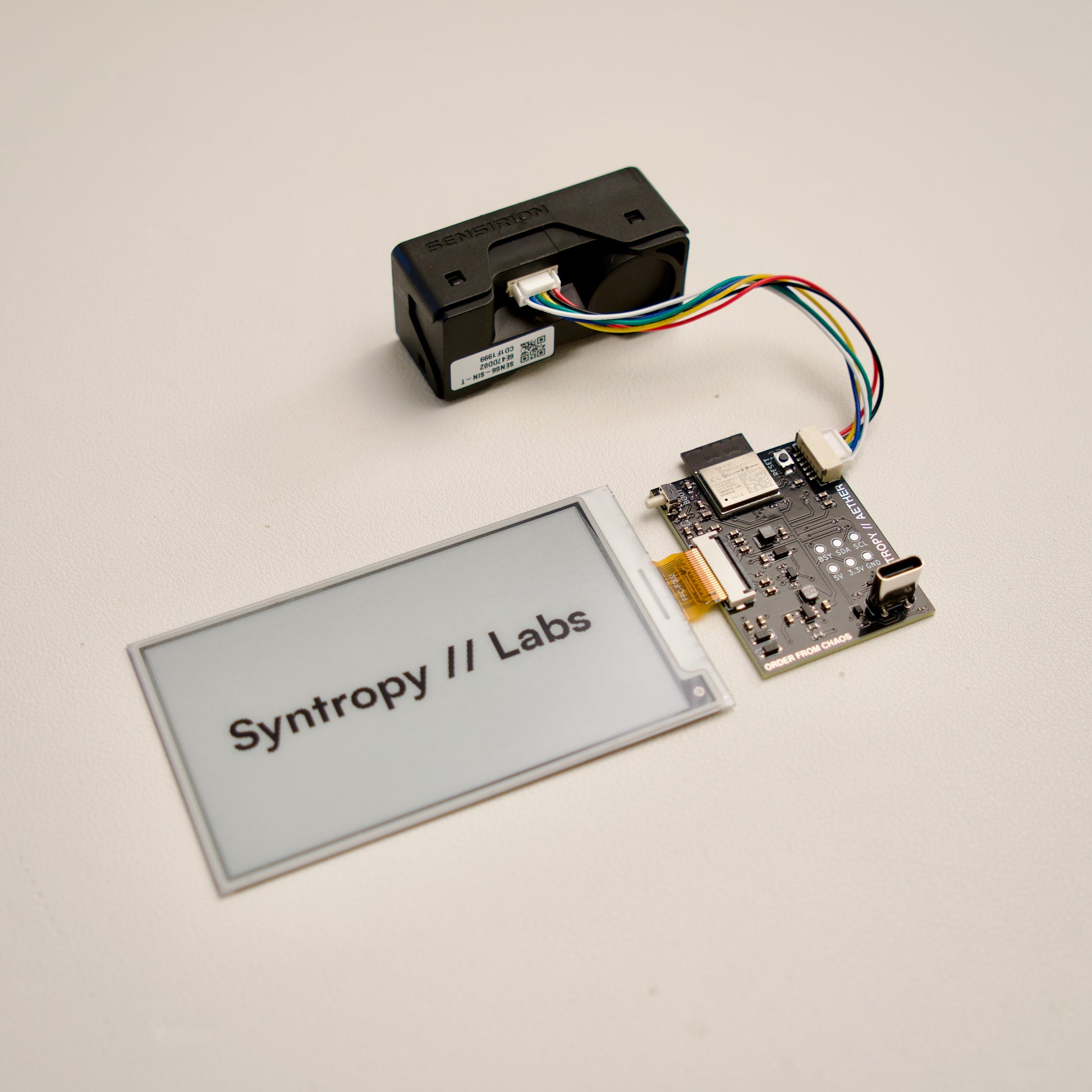

What’s Included:

• 1x Aether Custom PCB: The brain of Aether, featuring an ESP32-C3, pre-flashed and tested.
• 1x Sensirion SEN66 Module: True NDIR CO2 tracking, plus highly accurate detection of PM1.0, PM2.5, PM4.0, PM10, VOCs, NOx, Temperature, and Humidity.
• 1x 3.7-inch E-Paper Display: A glare-free, non-backlit, and high-contrast 240x416 display for at-a-glance metrics without the intrusive glow of an LCD.
• 1x 6-Pin JST GH Cable: To connect the Aether PCB and Sensirion SEN66.
• Enclosure Hardware: 2x M3x6mm countersunk hex screws and matching nuts for the standard enclosure.

What You Will Need to Supply:

• Enclosure: Enclosure (design your own, or 3D print and use the standard enclosure)

• Power: USB-C cable
